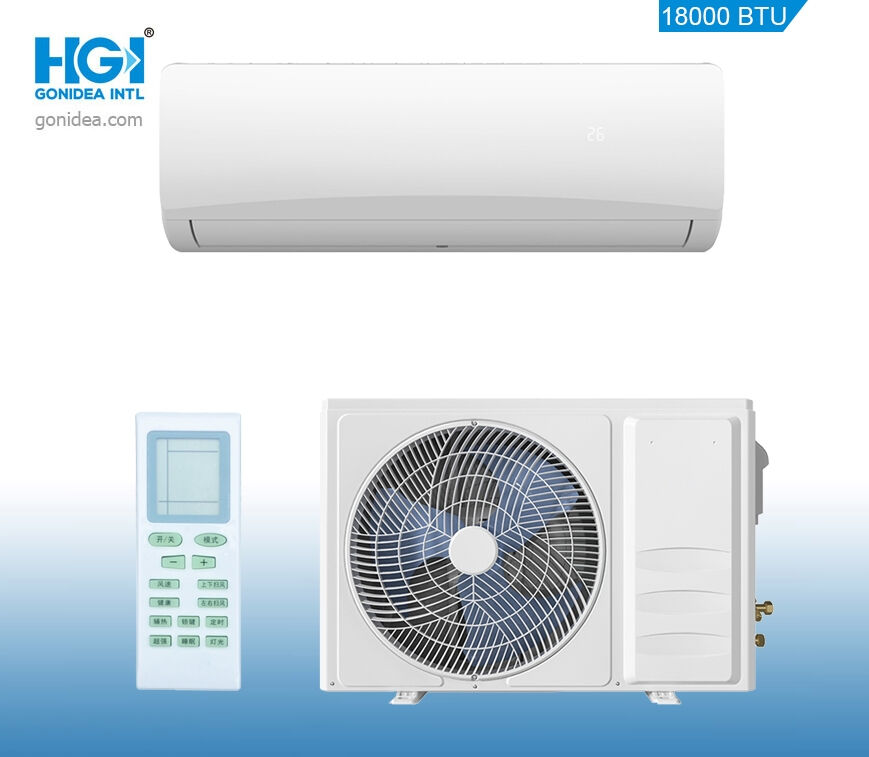

Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
  • Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH
Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH

Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp50CH

証明 CE, CCC, RoHS, GS, CB
プロダクト細部
型番:
SP/J-BP50CH
使用法:
部屋
室内機の騒音:
45/42/39/37
中国のエネルギー効率基準:
レベル2
冷却/加熱:
冷却のみ
電源:
電気
パワータイプ:
直流
状態:
新しい
定格電源:
1pH / 220-240V/50Hz
動作温度範囲:
-7℃～43℃
輸送パッケージ:
カートン
仕様:
R410A
商標:
HGI
起源:
中国
HSコード:
8415102100
生産能力:
年間500000/PCS
ハイライト:

Wall mounted air conditioner 18000BTU

,

Inverter frequency air conditioner low-power

,

Wall hanging air conditioner with warranty

支払及び船積みの言葉
最小注文数量
100
価格
280
製品説明
Fashionable Wall Mounted Air Conditioner Series 18000BTU Low-Power Operation INERTER Frequency Air Conditioner  SP/J-BP50CH
Product Description

DC INVERTER SP/J-BP26CH SP/J-BP35CH SP/J-BP50CH SP/J-BP70CH
Rated Power supply  1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz
Workable Power supply 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 160-260V/50Hz 1Ph / 160-260V/50Hz
Cooling Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2500(150~3000)W 3200(150~3500)W 4800(1250-5910) 6810(1830~7800)
Input  (W) 900(100~1200)W 1280(75~1560)W 1780(330-2340) 2350(410~2830)
Rated current  (A) 4.0 (0.8~5.3)A 5.7(0.5~6.9)A 7.9(1.7~12.0) 10.5(2.3~12.3)
EER 2.78  2.50  2.70  2.90
Heating Capacity  (btu/h) 9000 12000 18000 24000
Capacity  (W) 2800(150~3300)W 3300(150~3700)W 4800(1250-6070) 6870(1850~7900)
Input  (W) 960(75~1260)W 1260(75~1580)W 1670(340-2520) 2240(420~3000)
Rated current  (A) 4.3(0.5~5.6) 5.6(0.5~7.0)A 7.5(1.7~13.0) 10.0(2.3~13.5)
COP 2.92  2.62 2.87  3.07
Max. input consumption   (W) 1600  1720  2520  3100
Max. current  (A) 8.50  9.00  13.00  14.80
Compressor Type Rotary Rotary Rotary Rotary
Brand GMCC,GREE GMCC GMCC GMCC
Indoor unit  Indoor Coil  Fin material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Indoor air flow (Turbo/Hi/Mi/Lo)  (M3/h)  500/450/370/320 550/500/450/370 850/750/650/580 1050/950/800/680
Rated input Power(cooling/heating)  (W) 30 30 35 45
Rated current  (cooling/heating)  (A) 0.2 0.2 0.35 0.4
Moisture Removal  (KG/h) 0.8 0.8 2 2.6
Noise level(Turbo/Hi/Mi/Lo)  (dB(A)) 39/34/32/30 42/39/36/33 45/42/39/37 49/47/45/42
Unit dimension (W*H*D) 695×275×190 780×275×190 910×295×205 1075×330×240
Packing (W*H*D) 763×322×241 847×322×241 975×340×255 1146×412×318
Net weight  (KGs) 6 7 10 14
Gross weight  (KGs) 8 9 12 18
Outdoor unit  Outdoor coil Fin  material Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic& Golden& hydrophilic&
Tube outside dia.and material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Noise level  (dB) 50 52 55 59
Unit dimension (W*D*H)   (mm) 710×295×495 710×295×495 760×305×550 780×350×600
Packing   (W*D*H)  (mm)  818×328×530 818×328×530 869×339×588 896×387×625
Net weight  (KGs) 20 21 24 30
Gross weight  (KGs) 23 24 28 34
Refrigerant type R410A / 520g R410A / 560g R410A / 770g R410A / 1070g
Refrigerant pipe Liquid side  (mm) Φ6 Φ6 Φ6 Φ6
Gas side  (mm) Φ9 Φ9 Φ12 Φ15.88
Max. refrigerant pipe length (m)  10 10 10 15
Max. difference in level  (m)  5 5 5 10
Operation temperature range  -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC
Ambient temperature range  -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC
Application area   (MM2)  10~17 13~27 20~40 30~55
Sets per 40ft HQ/20ft   40HQ/20 340/- 334/143 267/- 186/81
